21 Gauge

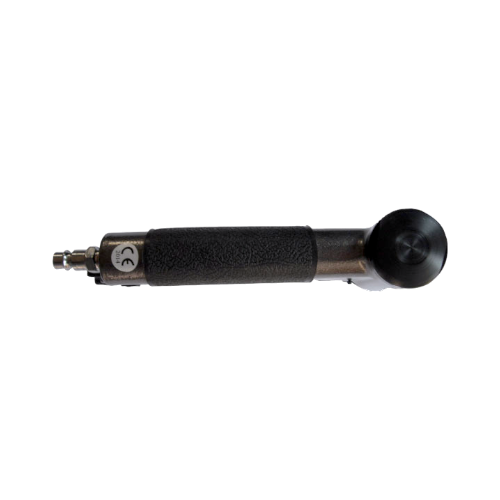

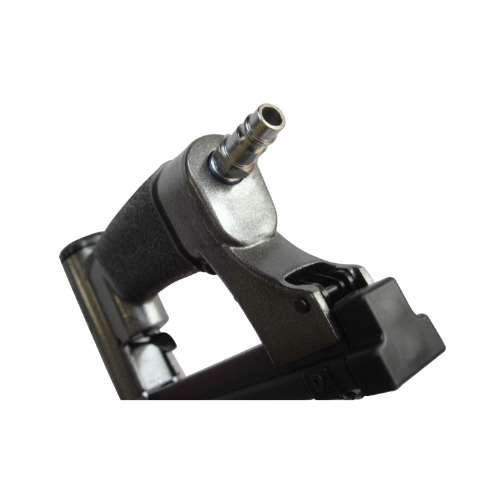

9716S
Rear Exhaust Upholstery Stapler With Single Firing- Specification
- L x W x H: 216 x 38 x 140 mm
- Weight: 0.9 kgs
- Loading Capacity: 100 pcs
- Operating Pressure: 5 - 7 bar (70 - 110 psi)
Description

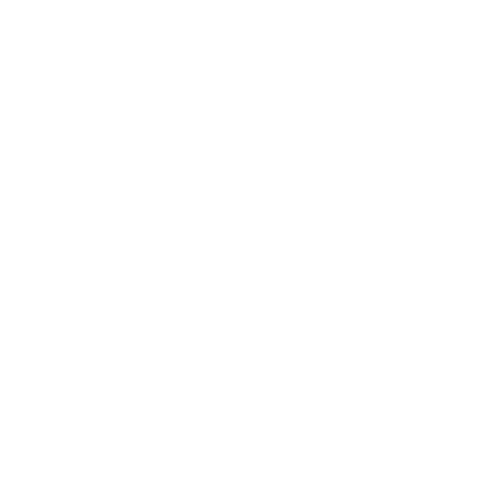

- Staple Type: Fine Wire Staples
- Gauge: 21 ga.
- Crown: 4.5 mm
- Width x Thickness: 0.95 x 0.65 mm
- Fastener Range: 5 - 16 mm
- Select the staples for 9716S
Equivalent and Similar
- BeA 97
- Bostitch SX 4023
- Omer 4097
- Prebena O
Product Overview

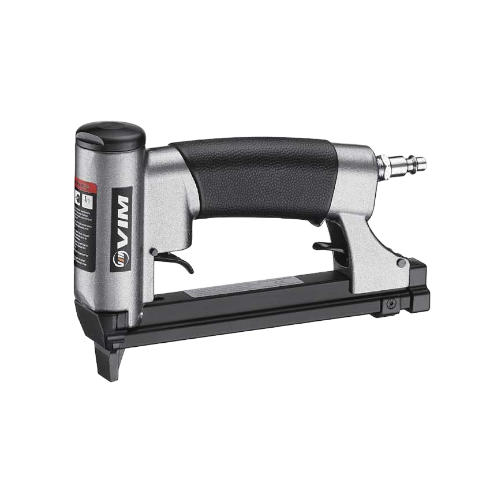

The 9716S is a lightweight and compact 21-gauge fine wire upholstery stapler designed for precise single-fire operation. It drives staples with a 4.5 mm crown, 0.95 × 0.65 mm wire dimensions, and leg lengths from 5 to 16 mm. Its staple specification is equivalent or similar to BeA 97, Bostitch SX 4023, Omer 4097, and Prebena O series. The 100-staple magazine features a convenient latch for quick and easy reloading.

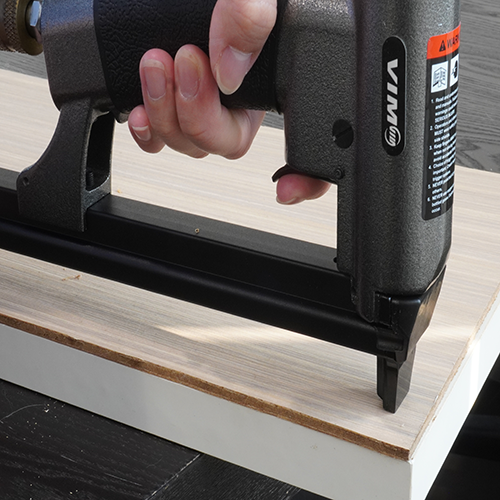

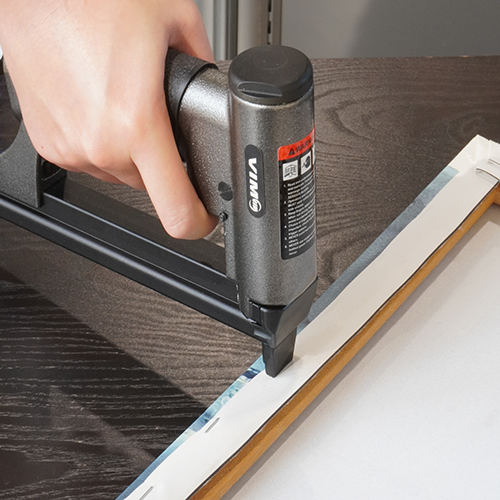

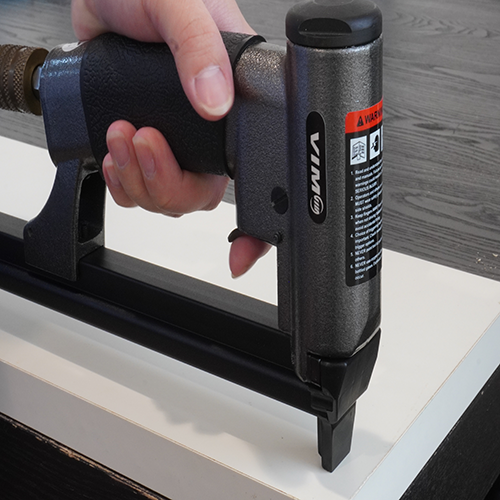

Weighing only 0.9 kg, the 9716S is comfortable to handle during extended use. Its rear exhaust directs air away from the operator, while its efficient design consumes 30–40% less air than comparable tools. A durable driver unit incorporating high-quality material provides reliable performance. It is ideal for furniture manufacturing, upholstery, automotive and car vinyl, interior finishing, carpet edging, and trimming applications.
Application
- Furniture
- Upholstery

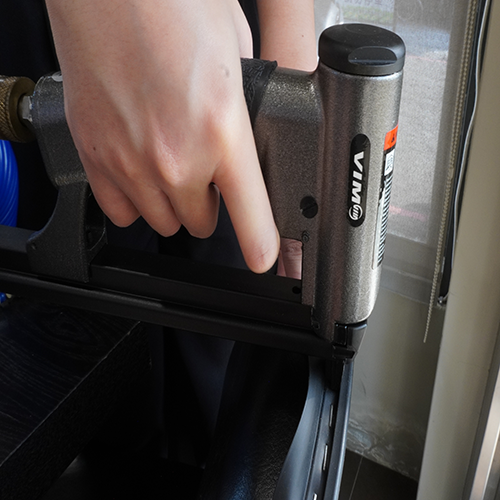

- Automotive and car vinyl
- Interior
- Carpet edge
- Trimming
Features
- Light weight
- Compact size

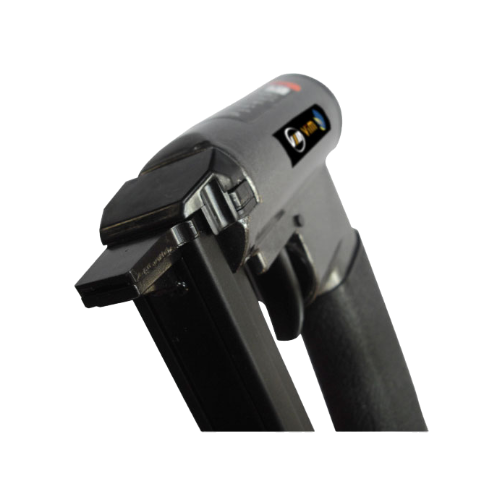

- Magazine latch for easy loading

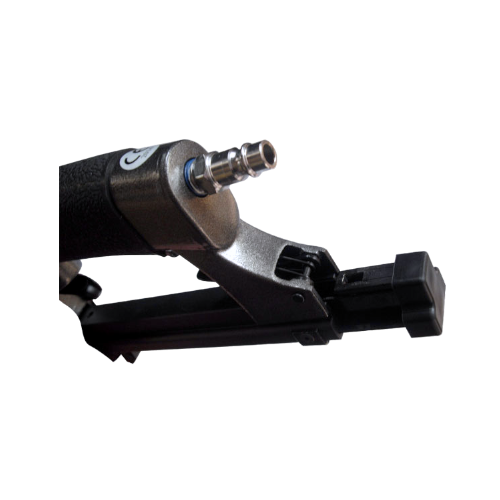

- Rear air exhaust and anti dirt on workpiece
- 30–40% lower air consumption than other competitors
- Durable driver unit with high-quality material
- Single-firing designed for precision one staple per shot
Comparison Chart for Similar Products
| 21 Gauge 97 Series Fine Wire Stapler | |||||||
|---|---|---|---|---|---|---|---|
| Model | Crown | Wire Size | Fastener Length | Loading Capacity | Firing Mode | Extended Nose | Extended Magazine |
| 9716S | 4.5 mm | 0.95 x 0.65 mm | 5 - 16 mm | 100 pcs | Single | - | - |
| 9716A | Auto | - | - | ||||
FAQ
1. What air pressure is required to operate the 9716S?
The recommended operating pressure is 5–7 bar (70–110 psi). Its efficient pneumatic system consumes approximately 30–40% less air than comparable staplers, making it suitable for continuous production and workshop use.
2. What is the benefit of the "Single Firing" mechanism?
The 9716S fires exactly one staple per trigger pull. This provides maximum point-to-point accuracy and completely eliminates accidental double firing.
3. What size staples does the 9716S use?
The 9716S takes 21 Gauge (21 ga.) fine wire staples with a 4.5 mm crown and a leg length range of 5-16 mm.
4. Does the 9716S support different firing modes?
Yes. Our 97 series feature both single-shot and automatic firing modes, allowing users to switch according to their application needs.
