23 Gauge
RPT630R

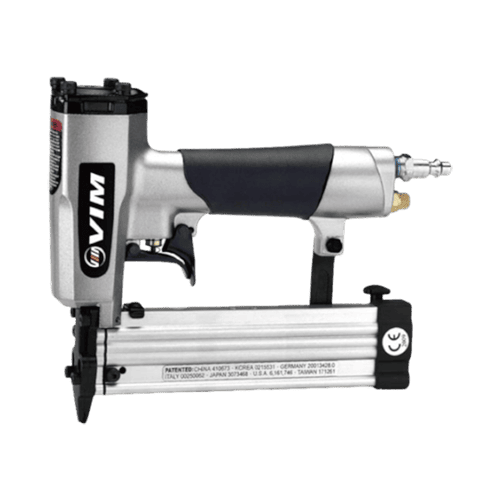

23 GA. 2 In 1 Pin Nailer With Rear Exhaust- Specification
- L x W x H: 175 x 40 x 220 mm
- Weight: 1.02 kgs
- Gauge: 23 ga.
- Nail Shank Dia: 0.64 mm (0.025")
- Fastener Range: 12 - 30 mm (15/32" ~ 1-3/16")
- Loading Capacity: 120 pcs
- Operating Pressure: 5 - 7 bar (70 - 100 psi)
Application
- Light wood assembly
- Finish Carpentry
- Trimwork
- Decorative molding
- Dowel pin
- Joint
- Mirror and picture frame
- Glazing strip
- Craftwork
- Paneling
- External softwood trim
- Wall framing
- Truss
- Rattan furniture
- Display and sign work
Features
- Double trigger safety lock

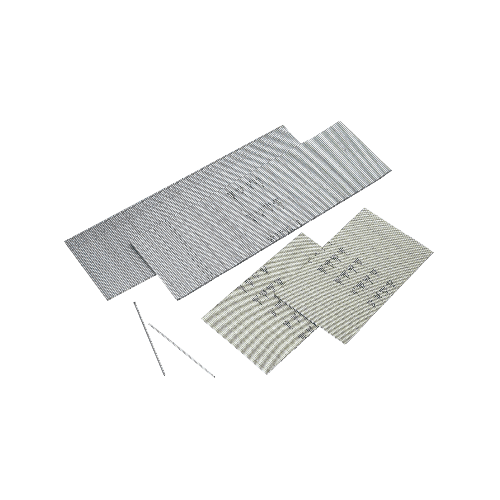

- Drives headless pins and micro head brads
- Adjust-free magazine for easy using any fastener length
- Magazine sight window
- The rear of magazine is cut-off at an angle to allow the tool to be placed right up to the coner
- Removable nose cover provides easy access to clear fastener jams
- Narrow nose allows to reach into tight areas and detailed work surfaces
- Rear exhaust conveniently directs exhaust away from user and work surface
- Rear Exhaust with silence
- Comfortable rubber handle grip
- With belt hook for easy carrying
