Product Overview

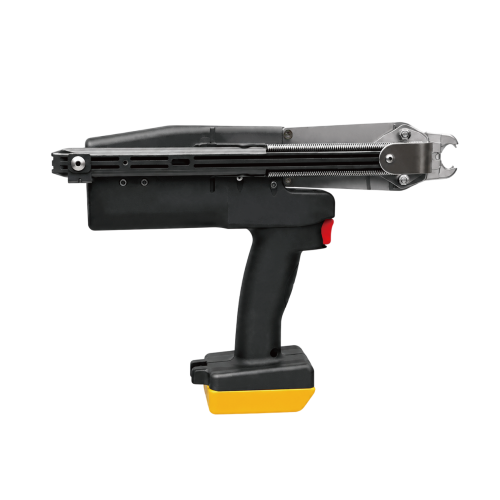

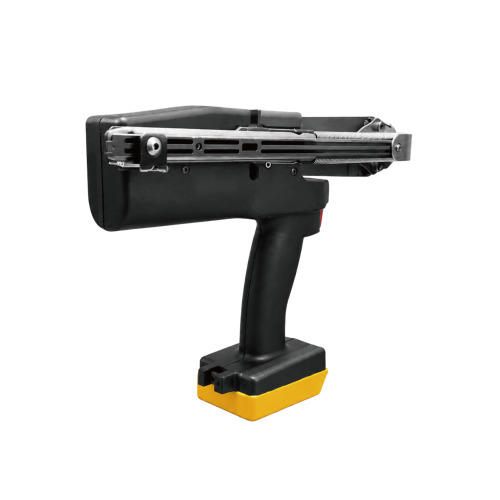

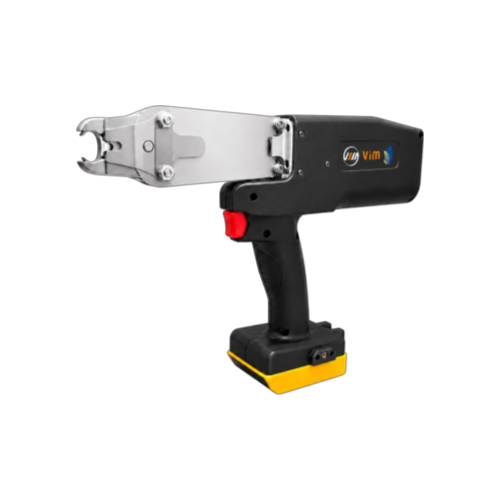

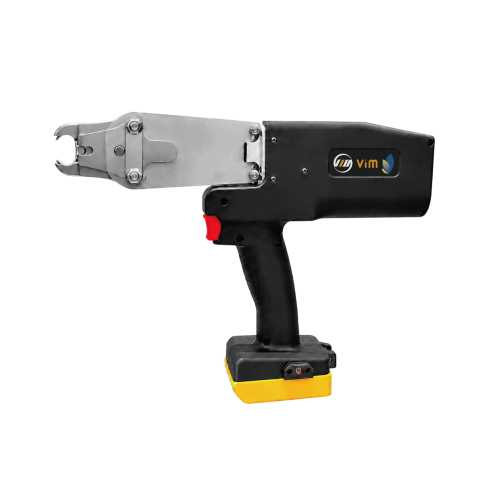

Built specifically for fastening applications using stainless steel C-rings, this 16 GA. cordless hog ring plier combines a 25 mm working length with an outward-forming C-ring design. It uses 16 GA. stainless steel C-rings with a 16.7 mm crown and 1.6 mm wire size, producing a closure range of 2.8–5.6 mm. The outward-forming design directs the C-ring points toward the outside of the formed ring and is well suited for fastening work in mattresses, automotive seating, upholstery, mesh bags, fencing, greenhouse structures, cages, and wire mesh assemblies.

The 25 mm nose provides a compact working profile for general fastening tasks and applications where maneuverability is important. With a compact body and a weight of only 1.85 kg, the tool is easy to handle during repetitive work and can be used without the restrictions of air hoses and compressors. Different versions are available for DeWalt, Makita, Milwaukee, or Bosch battery platforms, allowing users to select the battery system that best matches their existing batteries and chargers.

Designed with balanced weight distribution and practical handling in mind, the tool offers stable leverage and improved control across both workshop and on-site applications. Its combination of cordless mobility, compatibility with stainless steel C-rings, outward C-ring forming, compact working access, and lightweight construction makes it a versatile fastening solution for production, assembly, and maintenance environments.

Comparison Chart for Similar Products

FAQ

1. What’s the difference between C, D, and Omega type hog ring pliers?

Hog ring pliers are classified based on the shape of the rings they work with. C-type pliers are the most commonly used, suitable for general fastening tasks such as fencing, automotive seats, and bag closures. D-type pliers are designed for D-shaped rings, often used in specific mechanical or agricultural applications. M (Omega) type pliers are made for fastening with Omega-shaped rings, which offer wider coverage and are ideal for tasks like assembling cages or securing mesh in larger surface areas. Choosing the right type depends on the ring shape required for your application.

【Extending reading: Mastering Hog Ring Pliers: 9 Reasons You Need This Essential Tool】

2. How do battery and pneumatic C ring pliers compare?

Battery C ring pliers offer greater mobility because they do not require an air hose and compressor, making them convenient for on-site work or areas where compressed air is not available.

Pneumatic C ring pliers are generally better suited for continuous, high-volume production because they can operate for long periods without battery charging. The best choice depends on whether portability or continuous production efficiency is the priority.
【Extending reading: Pneumatic vs. Electric Nailer: How to Choose the Best Option for Your Workflow】

3. What is the difference between “outward-forming” and “inward-forming”?

Outward-forming and inward-forming refer to the direction of the C-ring points after the ring is closed. With outward-forming, the sharp points remain on the outer side of the formed ring, while inward-forming directs the points toward the inside of the ring.

Both forming styles can be used for applications such as mattress assembly, automotive seating, upholstery, fencing, wire mesh, and cages. The preferred style depends on the application, material, and required finished shape. Inward-forming can help reduce exposed sharp points on the outer surface, while outward-forming is a conventional forming style commonly used in many fastening applications.

OEM service

Our OEM services offer comprehensive customization options to meet your specific branding needs. We provide the ability to customize the color of your nail gun, apply your private label, design and create personalized packaging, and manual.
With our OEM services, you can confidently create a unique and professional product line that stands out in the market.

Guarantee

VIM warrants to the original purchaser that our nailer will be free from defects in material and workmanship under normal use for a period of 1 year from the date of original purchase.
If this nailer should prove to be defective in material or workmanship within the warranty period, we will send the spare parts to you to replace, without charge.
The 1-year warranty does not include easy-worn parts, and any defect or damages caused by resulting from accident, misuse, abuse, improper maintenance, or normal wear and tear.

Shipping Information

VIM offers a variety of shipping options to ensure your order reaches you in the most economic, convenient and timely manner. Below are the available shipping methods.

Please select your preferred shipping method during checkout. If you have any questions or needs, feel free to contact us.

Express Shipping

For expedited delivery, we provide express shipping through the following carriers: UPS, FedEx, DHL, OCS, SF Express, etc.

Sea Freight

For larger and less urgent shipments, we offer sea freight services. This cost-effective method is ideal for bulk orders and items that do not require immediate delivery.

Air Freight

If you need a balance between speed and cost, air freight will be your option. It is faster than sea freight and suitable for medium to large shipments that need to arrive quickly.
