20 Gauge
425JA

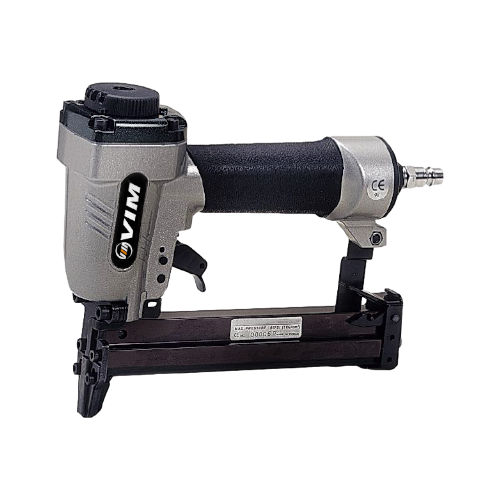

Narrow Crown Stapler- Specification
- L x W x H: 250 x 58 x 185 mm
- Weight: 1.23 kgs
- Loading Capacity: 100 pcs
Description

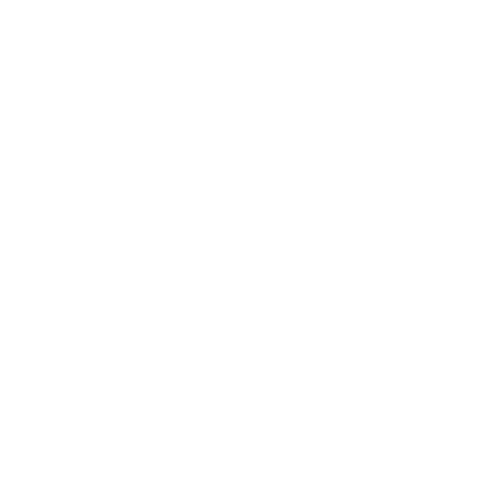

- Staple Type: Narrow Crown Staples
- Gauge: 20 ga.
- Crown: 4.0 mm
- Width x Thickness: 1.20 x 0.60 mm
- Fastener Range: 10 - 25 mm
- Select the staples for 425JA
Product Overview
Precision-engineered for specialty manufacturing environments, the 425JA Narrow Crown Stapler delivers a compact fastening solution tailored for both industrial assembly and delicate component work. Operating with 20-gauge staples and a 4 mm crown, it ensures an exceptionally narrow staple profile—ideal for clean, concealed fastening where minimal material disruption is critical. Supporting staple lengths from 10 mm to 25 mm, this tool handles a wide range of tasks from lightweight assemblies to reinforced joints.
The 425JA stands out in its category with its refined fastener profile and high-precision control, making it particularly well-suited for brush assembly, toy manufacturing, and luggage construction, in addition to traditional woodworking and cabinet applications. Its bottom-loading aluminum magazine provides both strength and speed, and the 360-degree rotatable air deflector improves worksite adaptability in tight or dust-sensitive spaces.
User-centered features include a comfortable rubber grip, a swivel belt hook designed for ambidextrous convenience, and a selectable trigger mode that supports both rapid bump firing and deliberate sequential actuation. This flexibility allows the 425JA to adapt to diverse production demands without compromising precision or efficiency.
Application
- Brush assembly
- Toy
- Luggage
- Furniture
- Paneling
- Drawer slide
- Heavy-duty cabinet
- Fence
Features
- 360 degree rotatable air deflector
- Bottom loading
- Durable aluminum magazine
- Comfortable rubber handle grip
- Selectable trigger mode (bump fire / sequential fire)
- Swivel belt hook for both left and right-handed users
Comparison Chart for Similar Products
Narrown Crown Stapler | ||||
---|---|---|---|---|
Model No. | Gauge | Crown | Width x Thickness | Fastener Range |
9725C | 21 Ga. | 4.5 mm | 0.95 x 0.70 mm | 10 – 25 mm |
4025C | 5.0 mm | 0.90 x 0.80 mm | ||
425JA | 20 Ga. | 4.0 mm | 1.20 x 0.60 mm | |
1025JA | 10.0 mm | 1.20 x 0.60 mm | ||
9025C | 18 Ga. | 5.7 mm | 1.25 x 1.05 mm | |
9225C | 8.7 mm | 1.25 x 1.00 mm | ||
SM25C | 10.0 mm | 1.10 x 1.25 mm |
FAQ
1. How do I choose the right narrow crown stapler for my application?
Choosing the right narrow crown stapler depends on several key factors, including the type of material you’re fastening, the thickness of the workpiece, the required holding power, and specific tool features.
For softer materials or light trims, a stapler with adjustable depth-of-drive control and sequential firing mode ensures cleaner, more precise fastening. For denser or multi-layered workpieces, you may need a tool that supports longer staples and higher driving force. Additionally, features like a 360-degree exhaust deflector, quick-release nose cover, or swivel belt hook can improve user comfort and operational efficiency.
Matching the stapler’s performance to your jobsite demands will help ensure both productivity and fastening reliability. If you're unsure, welcome to contact us to select a model that best fits your application and staple specifications.
2. What features should I look for in a narrow crown stapler, and what do they do?
VIM narrow crown staplers are designed with user safety, control, and convenience in mind. Here’s what the key features offer:
- 360 Degree Rotatable Air Deflector
It allows you to direct exhaust air away from your face or workspace, improving comfort and safety. - Trigger Modes (Bump Fire / Sequential Fire)
These selectable modes allow users to choose between speed and precision, increasing versatility depending on the material and task. - Swivel Belt Hook
Adds convenience by allowing the stapler access, making it easier to carry and use the stapler regardless of hand preference. - Quick Release Nose Cover
Speeds up jam clearing and routine maintenance, minimizing downtime. - Depth-of-Drive Dial
Provides stapler-free adjustment of staple depth to suit different materials and ensure flush, consistent fastening.
Extended reading: Unlock the Secret of Narrow Crown Staplers: 4 Advantages You Must Know
3. What is the difference between fine wire staplers, narrow crown staplers, and wide crown staplers?
The main difference lies in the gauge, crown size, and the type of applications they’re designed for.
Fine wire staplers typically use 20 to 23 gauge staples with a very thin and narrow crown. They’re ideal for light-duty applications like upholstery, fabric, insulation, and tagging, where minimal surface damage is important and holding power requirements are low.
Narrow crown staplers use slightly thicker staples—usually 18 to 21 gauge. These are versatile tools commonly used in cabinetry, furniture assembly, paneling, and finish carpentry. They offer a good balance between holding power and a clean finish.
Wide crown staplers, on the other hand, use heavier staples with a 16 gauge. These are intended for heavy-duty jobs such as subflooring, sheathing, packaging, or crate assembly, where strong holding power and larger surface coverage are needed.
Extended reading: Everyone Needs to Know the Complete Guide to Wide Crown Staplers
