22 Gauge
7116ALM

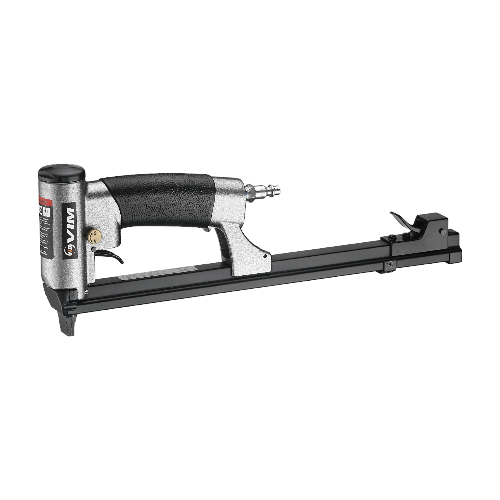

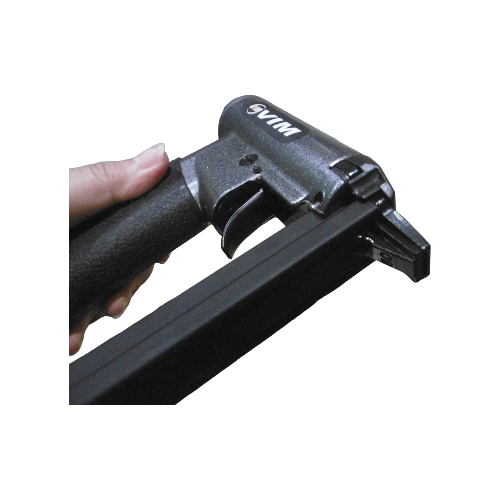

Rear Exhaust Upholstery Stapler With Auto Firing And Long Magazine- Specification
- L x W x H: 380 x 38 x 140 mm
- Weight: 1.2 kgs
- Crown: 9.1 mm
- Guage: 22 ga.
- Width x Thickness: 0.75 x 0.60 mm
- Fastener Range: 5 - 16 mm
- Loading Capacity: 400 pcs
- Operating Pressure: 5 - 7 bar (70 - 100 psi)
- Equivalent: Senco C, Atro 7, BeA 71, Omer 3GF

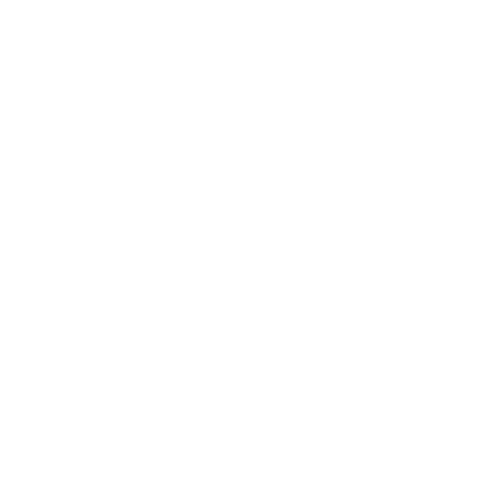

Description
- Staple Type: Fine Wire Staples
- Gauge: 22 ga.
- Crown: 9.10 mm
- Width x Thickness: 0.75 x 0.60 mm
- Fastener Range: 5 - 16 mm
- Select the staples for 7116ALM
Equivalent
- Atro 7
- BeA 71
- Duo-fast 7
- Haubold 7100
- Kihlberg 670
- Omer 3G
- Prebena V
- Senco C
Product Overview
The 7116ALM Fine Wire Stapler delivers precise fastening for light-duty applications that require a clean and professional finish. With a 9.1 mm crown width and 22-gauge fine wire, it minimizes surface marks while providing secure fastening for upholstery, furniture framing, cabinetry, and light wood assembly. It is fully equivalent to Atro 7, BeA 71, Duo-fast 7, Haubold 7100, Kihlberg 670, Omer 3G, Prebena V, and Senco C staples, offering broad compatibility for users working with different tool systems or looking to maintain their existing staple inventories.
Designed for professional high-volume industrial production, the SNCA16ALM combines an automatic firing mechanism with a long magazine to improve fastening efficiency during repetitive work. The auto-firing design supports rapid continuous stapling, while the extended magazine increases staple capacity and reduces reloading frequency during long production runs. Its fast-response piston assembly supports staples from 5 mm to 16 mm, delivering stable driving performance and clean penetration. With a lightweight and well-balanced construction, the SNCA16ALM helps reduce operator fatigue while maintaining consistent performance and long-term reliability in demanding production environments.
Application

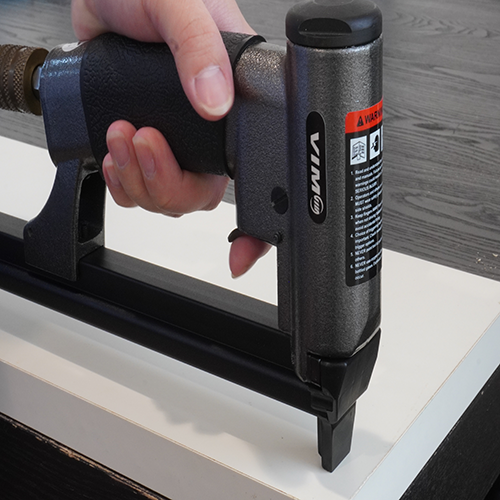

- Upholstered furniture manufacturing

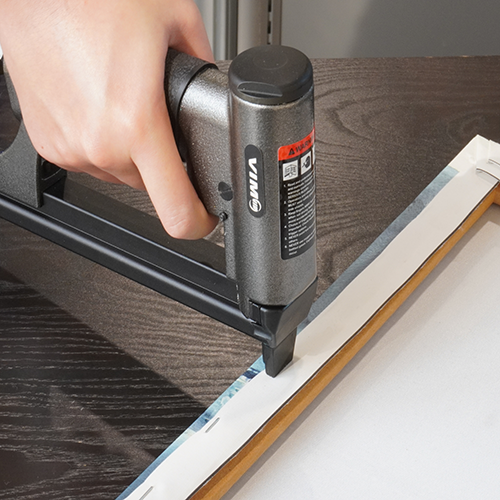

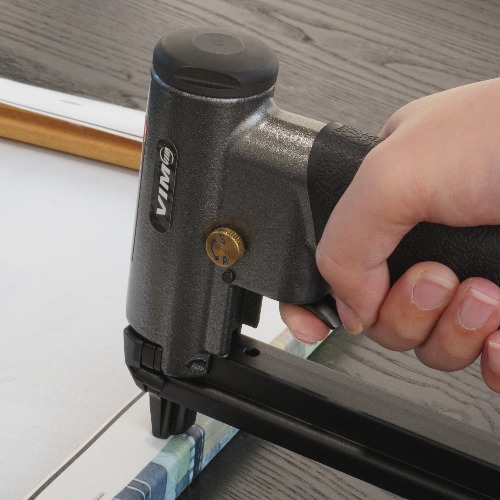

- Fabric and textile attachment
- Decorative trim and paneling

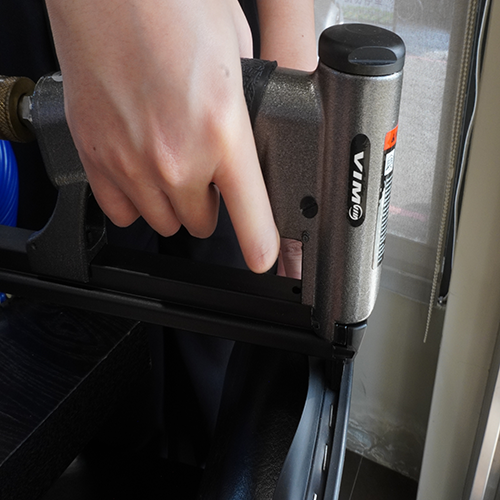

- Automotive and interior seating
- Mattress edge binding

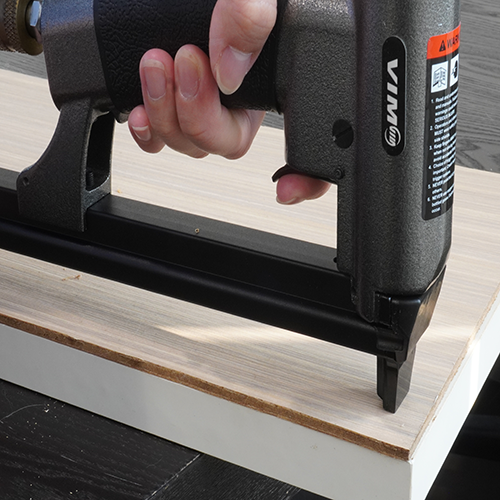

- Light wood assembly and insulation fastening
Features
- Compatible with 22 gauge fine wire staples from 5 mm to 16 mm
- Energy-efficient design with 30-40% lower air consumption
- Rear exhaust design directs air away from the operator and work surface
- Fast and responsive trigger mechanism for efficient production work

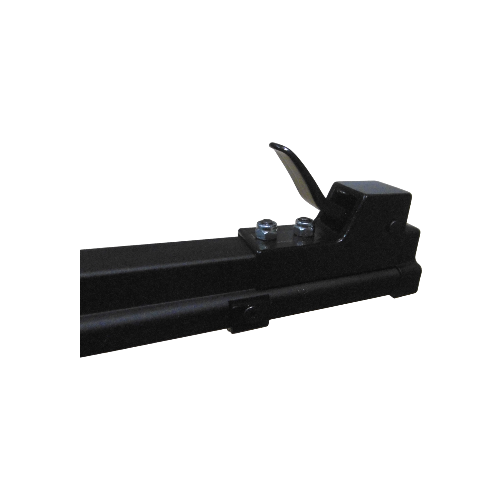

- Long magazine design increases staple capacity and reduces reloading frequency for continuous high-volume production
- Lightweight and well-balanced frame minimizes operator fatigue in continuous use
- Reinforced metal body construction provides long-term durability for industrial environments
- Interchangeable with Atro 7, BeA 71, Duo-fast 7, Haubold 7100, Kihlberg 670, Omer 3G, Prebena V, Senco C
- Auto-firing design enables continuous firing while holding down the trigger or via a simple toggle, reducing finger fatigue and delivering a smoother combat experience.
Comparison Chart for Similar Products
| 22 Gauge 71 Series Fine Wire Stapler | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Crown | Wire Size | Fastener Length | Loading Capacity | Firing Mode | Extended Nose | Extended Magazine | |
| 7116S | 9.10 mm | 0.75 x 0.60 mm | 5 - 16 mm | 150 pcs | Single | - | - | |
| 7116A | 150 pcs | Auto | - | - | ||||
| 7116ALN | 150 pcs | Single | V | - | ||||
| 7116ALNM | 400 pcs | Single | - | V | ||||
| 7116ALN | 150 pcs | Auto | V | - | ||||
| 7116ALM | 400 pcs | Auto | - | V | ||||
| 7116ALNM | 400 pcs | Single | V | V | ||||
| 7116ALNM | 400 pcs | Auto | V | V | ||||
FAQ
1. What are the main applications for the 7116ALM?
The 7116ALM is ideal for upholstery, furniture manufacturing, automotive interiors, mattress production, and other high-volume fastening applications that require fast and repetitive stapling.
2. What are the advantages of the auto-firing and long magazine design?
The auto-firing mechanism enables rapid continuous stapling for improved production efficiency, while the long magazine increases staple capacity and helps reduce reloading frequency during continuous operation.
3. What size staples does the 7116ALM use?
The 7116ALM uses 22 Gauge (22 ga.) fine wire staples with a 9.10 mm crown and leg lengths ranging from 5 mm to 16 mm.
4. What firing mechanism does the 7116ALM use?
The 7116ALM features an automatic firing mechanism designed for fast and efficient repetitive stapling, making it well suited for continuous, high-volume production work.
