22 Gauge

7116ALNM

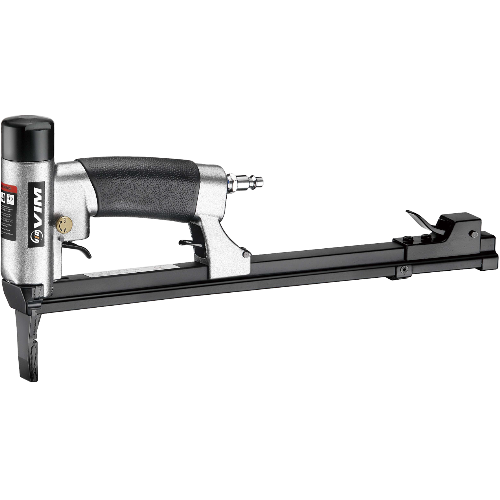

Rear Exhaust Upholstery Stapler With Auto Firing, Long Nose And Long Magazine

Specification: L x W x H: 380 x 38 x 197 mm; Weight: 1.2 kgs; Loading Capacity: 400 pcs; Operating Pressure: 5 - 7 bar (70 - 110 psi)

Description

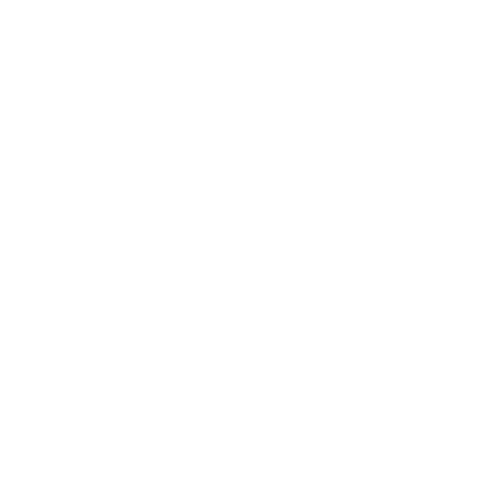

Staple Type: Fine Wire Staples

Gauge: 22 ga.

Crown: 9.10 mm

Width x Thickness: 0.75 x 0.60 mm

Fastener Range: 5 - 16 mm

Select the staples for 7116ALNM

Equivalent and Similar

Atro 7

BeA 71

Duo-fast 7

Haubold 7100

Kihlberg 670

Omer 3G

Prebena V

Senco C

Add Inquiry (0)

Product Overview

The 7116ALNM Fine Wire Stapler delivers precise fastening for light-duty applications that require a clean and professional finish. With a 9.1 mm crown width and 22-gauge fine wire, it minimizes surface marks while providing secure fastening for upholstery, furniture framing, cabinetry, and light wood assembly. It is fully equivalent to Atro 7, BeA 71, Duo-fast 7, Haubold 7100, Kihlberg 670, Omer 3G, Prebena V, and Senco C staples, offering broad compatibility for users working with different tool systems or looking to maintain their existing staple inventories.

Designed for professional high-volume industrial production, the 7116ALNM combines an automatic firing mechanism, extended long nose, and long magazine to maximize efficiency and accessibility. The long nose provides easy access to narrow grooves, recessed areas, and hard-to-reach angles, while the extended magazine holds more staples to reduce reloading frequency during continuous operation. Its fast-response piston assembly supports 5 mm to 16 mm staples and delivers stable driving performance with clean penetration. With a lightweight and well-balanced design, the 7116ALNM helps reduce operator fatigue while maintaining fast, consistent performance for demanding production lines.

Application

Upholstered furniture manufacturing

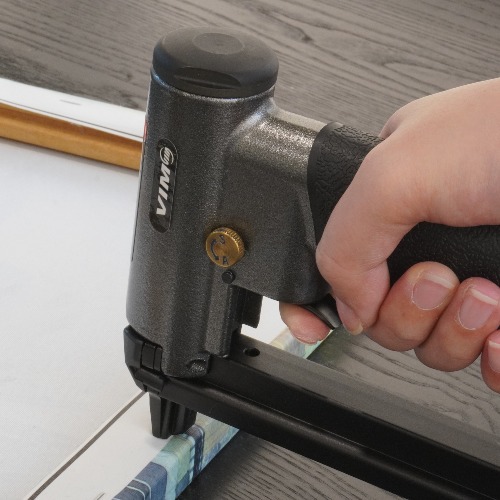

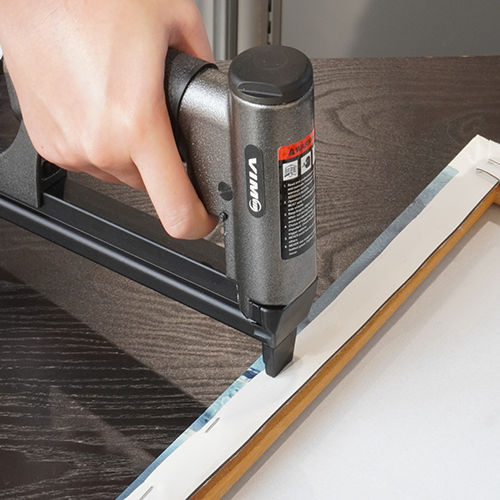

Fabric and textile attachment

Decorative trim and paneling

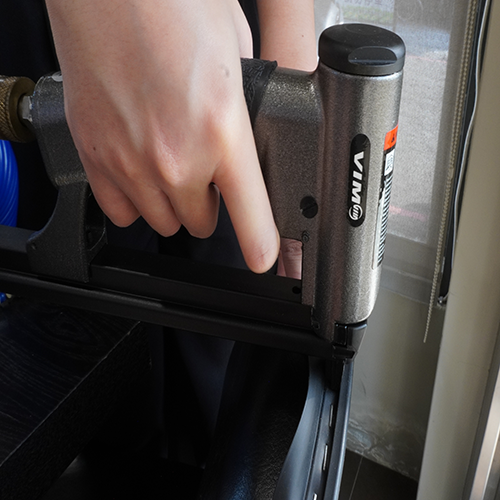

Automotive and interior seating

Mattress edge binding

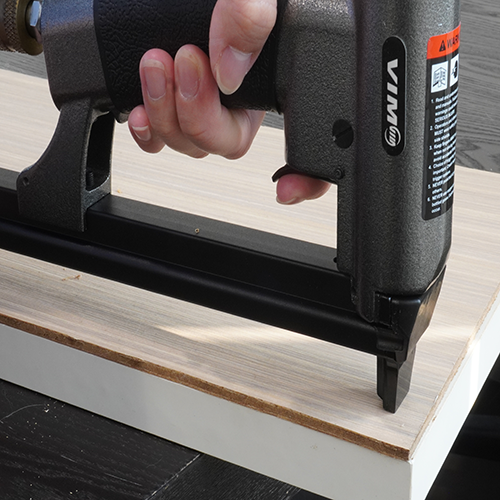

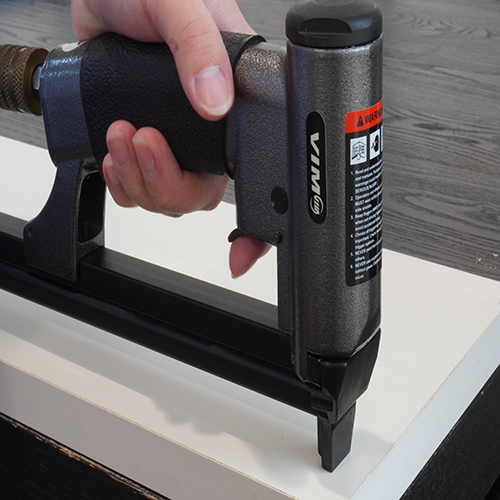

Light wood assembly and insulation fastening

Features

Compatible with 22 gauge fine wire staples from 5 mm to 16 mm

Energy-efficient design with 30-40% lower air consumption

Rear exhaust design directs air away from the operator and work surface

Fast and responsive trigger mechanism for efficient production work

Long magazine design increases staple capacity and reduces reloading frequency for continuous high-volume production

Lightweight and well-balanced frame minimizes operator fatigue in continuous use

Reinforced metal body construction provides long-term durability for industrial environments

Interchangeable with Atro 7, BeA 71, Duo-fast 7, Haubold 7100, Kihlberg 670, Omer 3G, Prebena V, Senco C

Auto-firing design enables continuous stapling while holding down the trigger, reducing finger fatigue and improving efficiency in repetitive production work

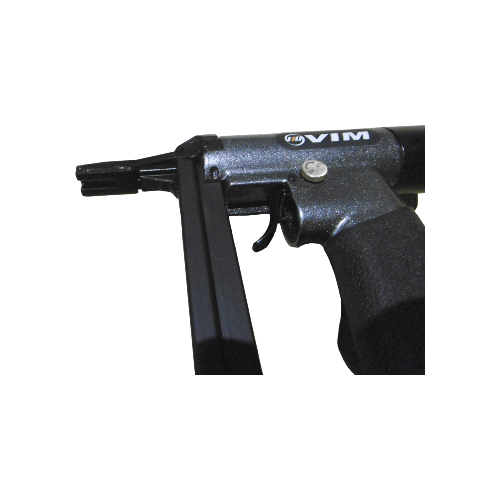

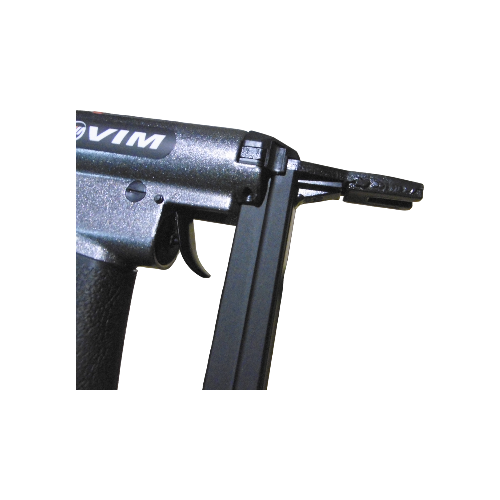

Long nose design provides easy access to narrow, recessed, and hard-to-reach fastening areas

Comparison Chart for Similar Products

22 Gauge 71 Series Fine Wire Stapler
Model	Crown	Wire Size	Fastener Length	Loading Capacity	Firing Mode	Extended Nose	Extended Magazine
7116S	9.10 mm	0.75 x 0.60 mm	5 - 16 mm	150 pcs	Single	-	-
7116A				150 pcs	Auto	-	-
7116ALN				150 pcs	Single	V	-
7116ALNM				400 pcs	Single	-	V
7116ALN				150 pcs	Auto	V	-
7116ALM				400 pcs	Auto	-	V
7116ALNM				400 pcs	Single	V	V
7116ALNM				400 pcs	Auto	V	V

FAQ

1. What are the main applications for the 7116ALNM?

The 7116ALNM is ideal for upholstery, furniture manufacturing, automotive interiors, mattress production, and other high-volume fastening applications that require both continuous stapling and easy access to narrow or hard-to-reach areas.

2. What are the advantages of the auto-firing, long nose, and long magazine design?

The auto-firing mechanism enables rapid continuous stapling for improved production efficiency, while the extended long nose provides easier access to narrow grooves, corners, recessed areas, and other confined spaces. The long magazine increases staple capacity and helps reduce reloading frequency during continuous production.

3. What size staples does the 7116ALNM use?

The 7116ALNM uses 22 Gauge fine wire staples with a 9.10 mm crown and leg lengths ranging from 5 mm to 16 mm.

4. What firing mechanism does the 7116ALNM use?

The 7116ALNM features an automatic firing mechanism designed for fast and efficient repetitive stapling, making it well suited for continuous, high-volume production work.
