22 Gauge

7116ALN

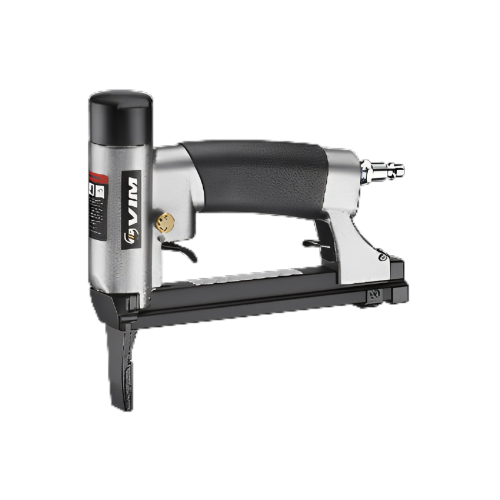

Rear Exhaust Upholstery Stapler With Auto Firing And Long Nose

Specification: L x W x H: 216 x 38 x 197 mm; Weight: 0.9 kgs; Crown: 9.1 mm; Guage: 22 ga.; Width x Thickness: 0.75 x 0.60 mm; Fastener Range: 5 - 16 mm; Loading Capacity: 150 pcs; Operating Pressure: 5 - 7 bar (70 - 110 psi); Equivalent: Senco C, BeA 71, Atro 7, Omer 3GF

Description

Staple Type: Fine Wire Staples

Gauge: 22 ga.

Crown: 9.10 mm

Width x Thickness: 0.75 x 0.60 mm

Fastener Range: 5 - 16 mm

Select the staples for 7116ALN

Equivalent

Atro 7

BeA 71

Duo-fast 7

Haubold 7100

Kihlberg 670

Omer 3G

Prebena V

Senco C

Add Inquiry (0)

Product Overview

The 7116ALN Fine Wire Stapler delivers precise fastening for light-duty applications that require a clean and professional finish. With a 9.1 mm crown width and 22-gauge fine wire, it minimizes surface marks while providing secure fastening for upholstery, furniture framing, cabinetry, and light wood assembly. It is fully equivalent to Atro 7, BeA 71, Duo-fast 7, Haubold 7100, Kihlberg 670, Omer 3G, Prebena V, and Senco C staples, offering broad compatibility for users working with different tool systems or looking to maintain their existing staple inventories.

Designed for professional industrial production, the 7116ALN features a standard-length magazine with a capacity of up to 150 staples, combined with a lightweight and well-balanced design that maximizes maneuverability in tight corners and hard-to-reach angles. Its fast-response piston assembly supports a wide staple range from 5 mm to 16 mm, delivering excellent driving stability and clean penetration. By reducing operator hand fatigue while maintaining consistent performance, this compact tool helps minimize wear on internal components and provides long-term reliability for demanding production lines.

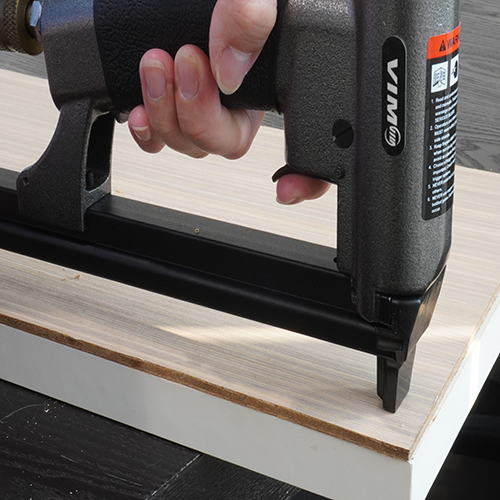

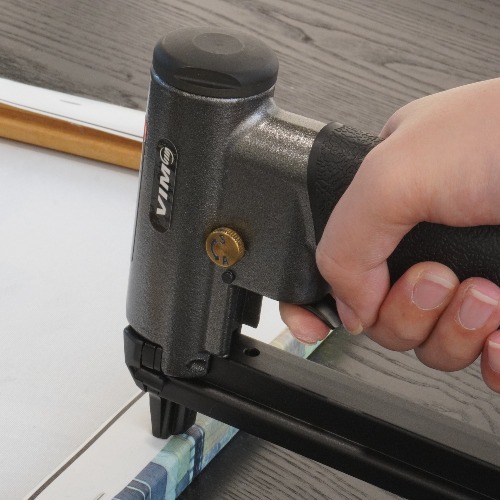

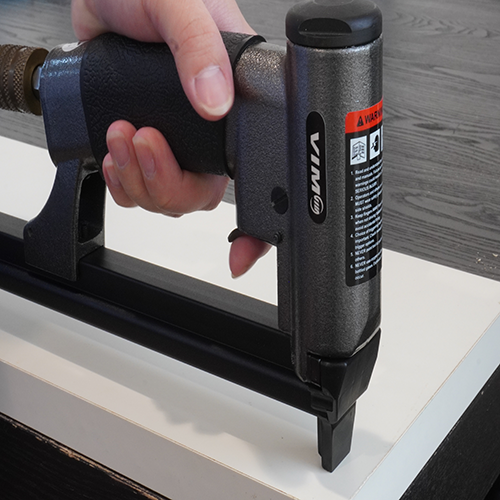

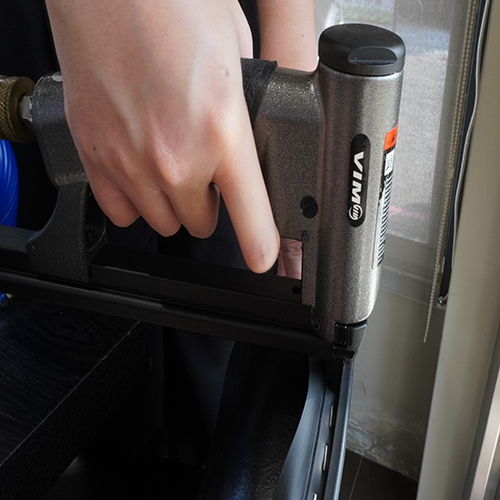

Application

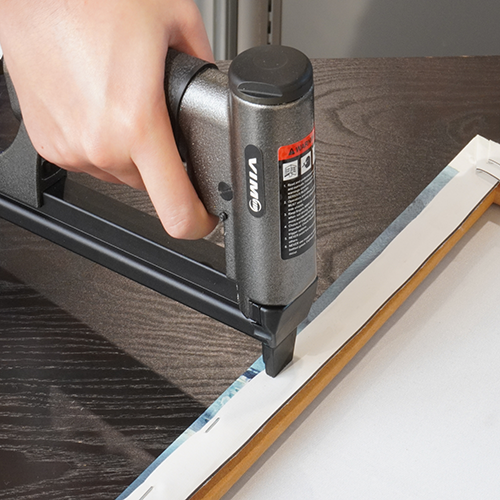

Upholstered furniture manufacturing

Fabric and textile attachment

Decorative trim and paneling

Automotive and interior seating

Mattress edge binding

Light wood assembly and insulation fastening

Features

Compatible with 22 gauge fine wire staples from 5 mm to 16 mm

Energy-efficient design with 30-40% lower air consumption

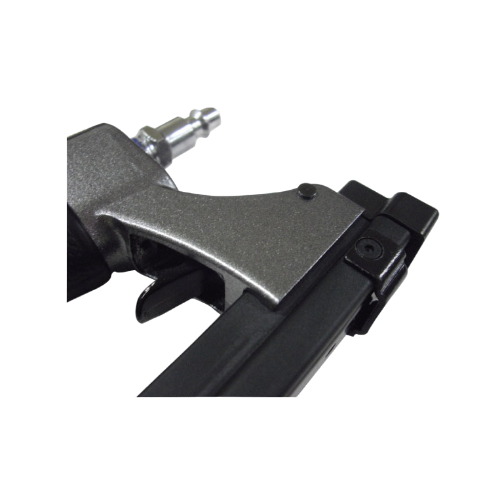

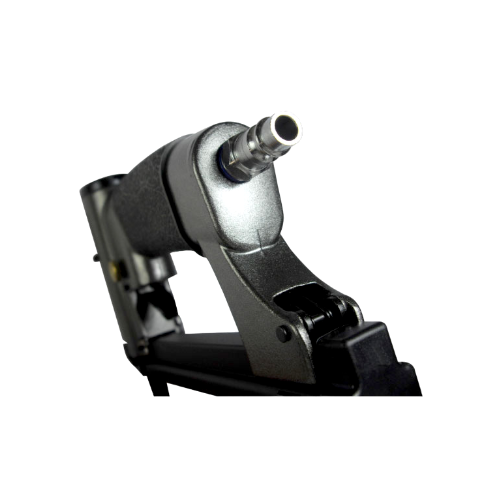

Rear exhaust design directs air away from the operator and work surface

Fast and responsive trigger mechanism for efficient production work

Standard-length magazine for smooth loading and balanced handling

Lightweight and well-balanced frame minimizes operator fatigue in continuous use

Reinforced metal body construction provides long-term durability for industrial environments

Interchangeable with Atro 7, BeA 71, Duo-fast 7, Haubold 7100, Kihlberg 670, Omer 3G, Prebena V, Senco C

Auto-firing design enables continuous firing while holding down the trigger or via a simple toggle, reducing finger fatigue and delivering a smoother combat experience.

Long nose design provides easy access to narrow, recessed, and hard-to-reach fastening areas

Comparison Chart for Similar Products

22 Gauge 71 Series Fine Wire Stapler
Model	Crown	Wire Size	Fastener Length	Loading Capacity	Firing Mode	Extended Nose	Extended Magazine
7116S	9.10 mm	0.75 x 0.60 mm	5 - 16 mm	150 pcs	Single	-	-
7116A				150 pcs	Auto	-	-
7116ALN				150 pcs	Single	V	-
7116ALNM				400 pcs	Single	-	V
7116ALN				150 pcs	Auto	V	-
7116ALM				400 pcs	Auto	-	V
7116ALNM				400 pcs	Single	V	V
7116ALNM				400 pcs	Auto	V	V

FAQ

1. What are the main applications for the 7116ALN?

The 7116ALN is ideal for upholstery, furniture manufacturing, automotive interiors, mattress production, and other high-speed fastening applications that require easy access to narrow or hard-to-reach areas.

2. What are the advantages of the auto-firing and long nose design?

The auto-firing mechanism enables rapid continuous stapling for improved production efficiency, while the extended long nose provides easier access to narrow grooves, corners, recessed areas, and other confined spaces.

3. What size staples does the 7116ALN use?

The 7116ALN uses 22 Gauge (22 ga.) fine wire staples with a 9.10 mm crown and leg lengths ranging from 5 mm to 16 mm.

4. What firing mechanism does the 7116ALN use?

The 7116ALN features an automatic firing mechanism designed for fast and efficient repetitive stapling, making it well suited for high-volume production work.

OEM service

Our OEM services offer comprehensive customization options to meet your specific branding needs. We provide the ability to customize the color of your nail gun, apply your private label, design and create personalized packaging, and manual.
With our OEM services, you can confidently create a unique and professional product line that stands out in the market.

Guarantee

VIM warrants to the original purchaser that our nailer will be free from defects in material and workmanship under normal use for a period of 1 year from the date of original purchase.
If this nailer should prove to be defective in material or workmanship within the warranty period, we will send the spare parts to you to replace, without charge.
The 1-year warranty does not include easy-worn parts, and any defect or damages caused by resulting from accident, misuse, abuse, improper maintenance, or normal wear and tear.
