Stop Wasting Your Time! 9 Coil Nail Hacks for Faster Roofing & Crates

In construction, woodworking, and industrial packaging, selecting the right coil nail can make the difference between a strong, lasting connection and a costly rework. While coil nailers and roofing nailers provide the speed and efficiency modern jobs demand, nail selection must be just as precise as tool choice. Factors such as wire diameter, shank type, head shape, and surface coating all influence performance, holding strength, and material compatibility.

This guide breaks down the most common applications of coil nails, from framing and fencing to furniture and subflooring. For each use case, we highlight typical nail specs and compatible tools to help you choose fasteners that meet both functional and structural expectations.

Real-World Applications of Coil Nails: Sizes, Tool Compatibility, and Performance Insights

Coil nails have become an essential fastener across modern construction, woodworking, and industrial packaging. Choosing the correct nail for each task goes beyond just the tool — wire diameter, shank type, coating, and head design all play a role in overall performance and longevity.

【Extended reading: A Deep Dive into Coil Nails: 5 Reasons You Should Choose Coil Nails】
【Extended reading: 10 Revolutionary Tips for Choosing Coil Nail Guns in Construction】

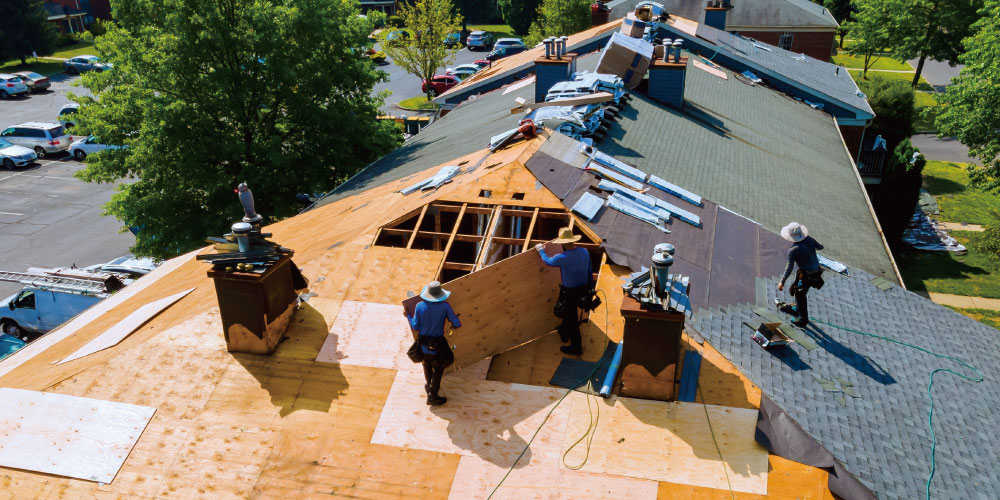

Roofing

Roofing applications demand high-performance coil nails that resist wind uplift, moisture, and long-term weathering. These ring shank coil nails feature a wide, full-round head (≥7/16" diameter) to prevent shingle tear-through while providing maximum surface coverage. When paired with a roofing nailer, these hot-dip galvanized (HDG) or stainless steel coil nails ensure code-compliant fastening of asphalt shingles, roofing felt, and waterproofing membranes.

Common Specs:

• Wire Diameter: 0.120"–0.148" (3.05 mm – 3.76 mm)
• Length: 7/8" ~ 2" (22 mm – 50 mm)
• Shank: Spiral ring shank
• Head: Full round, 11+ mm diameter
• Finish: Hot-Dip Galvanized (1.0 oz/ft² minimum coating) or Stainless Steel
• Tool Compatibility: Vim RN45, Bostitch RN46-1, Senco SCN200R, Metabo HPT NV45AB2, Grip-Rite GRR145

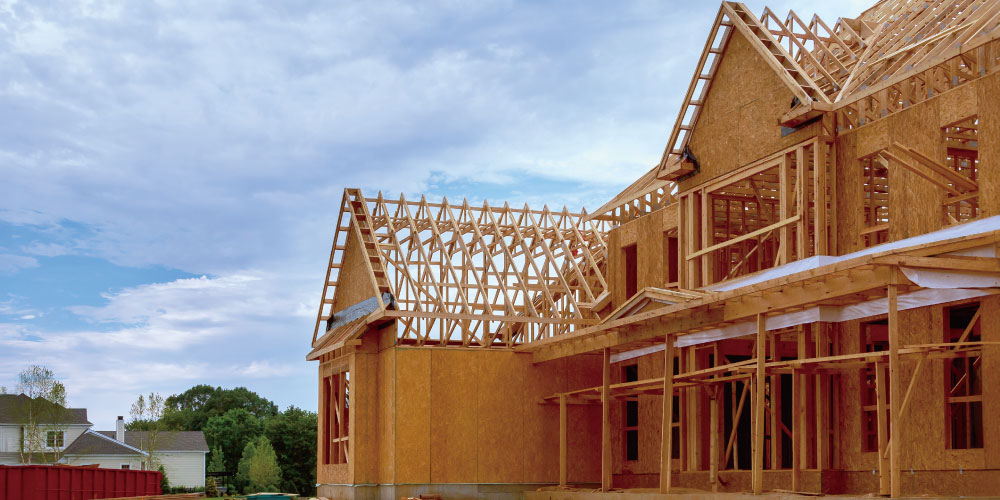

Framing and Sheathing

For structural framing and sheathing (OSB/plywood), heavy-gauge coil nails deliver deep penetration and critical load-bearing capacity. These are installed using pneumatic coil nailers with bump-fire triggers for high-speed production work. The vinyl/resin coatings reduce jamming while the ring shank design enhances shear strength by 40% over smooth shanks.

Common Specs:

• Wire Diameter: 0.99" – 0.148" (3.76 mm – 25.15 mm)
• Length: 1-3/4" ~ 3-1/2" (50 mm – 89 mm)
• Shank: Ring shank (structural) or Smooth shank (temporary)
• Head: Flat head or clipped head (for high-capacity magazines)
• Finish: Vinyl-coated (red for 2" ~ 3") or Resin-coated (green for 3-1/2")
• Tool Compatibility: Vim CN90C, Bostitch N89C-1, Senco SCN65XP, MAX CN890F2, Metabo HPT NV90AGS

【Extended reading: Every Tip for Choosing the Best Framing Nailer】

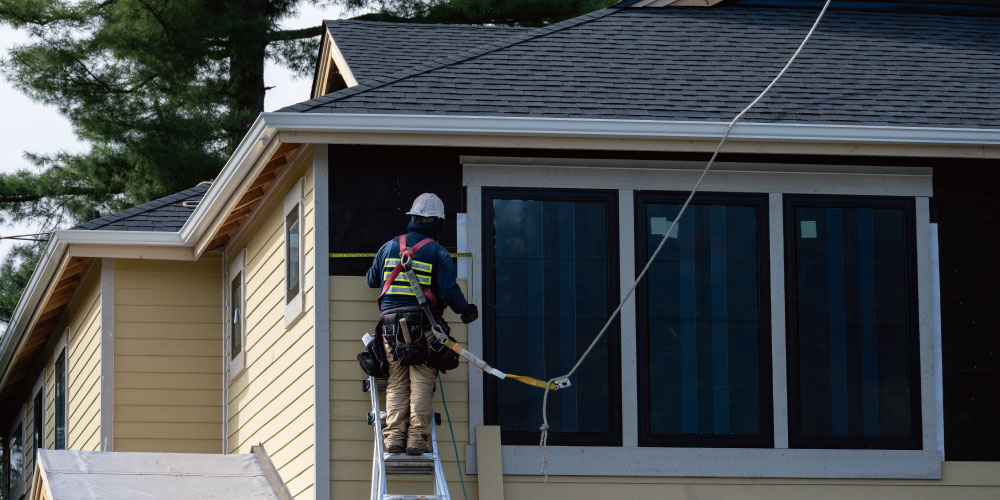

Siding Installation

Siding applications require precision-engineered coil nails that balance structural strength with clean aesthetics. These ring or screw shank coil nails feature low-profile conical or D-heads to minimize surface visibility while preventing material splitting. When paired with a roofing nailer or coil nailer, these galvanized, stainless steel, or aluminum-coated coil nails ensure weather-resistant fastening of fiber cement boards, engineered wood panels, and vinyl siding.

Common Specs:

• Wire Diameter: 0.083" – 0.113" (2.1 mm – 2.87 mm)
• Length: 1-1/4" ~ 2-1/2" (32 mm – 65 mm)
• Shank: Ring shank (wood) / Screw shank (composite)
• Head: Conical (fiber cement) / D-head (vinyl)
• Finish: Hot-Dip Galvanized (HDG), Stainless Steel (Grade 304), Aluminum-coated (min 0.5 oz/ft²)
• Tool Compatibility: Vim CN65WPA, CN65WPB, Bostitch N66C-1, Senco SN71P1, MAX CN565S3, Metabo HPT NV65AH2

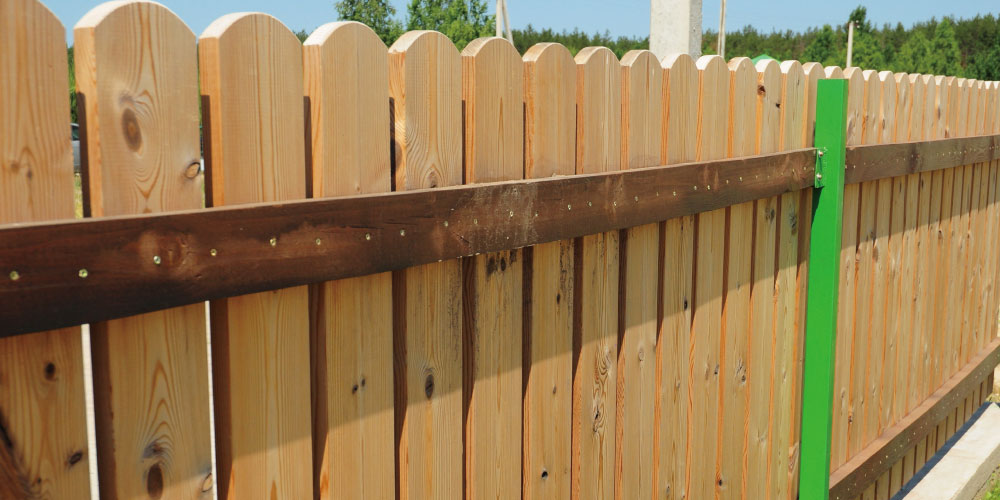

Fencing

Outdoor fencing demands coil nails that endure wind loads, moisture exposure, and ground shifts. Ring-shank coil nails with corrosion-resistant coatings provide superior holding power compared to standard nails. Professionals rely on roofing nailers or medium-duty coil nailers for efficient installation of pickets, rails, and panels.

Common Specs:

• Wire Gauge: 0.113"–0.131" (2.87 mm – 3.33 mm) (11–12 AWG)
• Length: 1-3/4" ~ 2-1/2" (45 mm – 65 mm) (Ideal for 1" ~ 1-1/2" lumber)
• Shank: Ring shank
• Finish: Electro-Galvanized (EG): (moderate climates), Hot-Dip Galvanized (HDG) (min 0.5 oz/ft²), Ceramic-Coated (Saltwater/coastal environments)
• Tool Compatibility: Vim CN65WPA, CN65WPB, Bostitch N66C-1, Senco SCN65XP, MAX CN565S3, Metabo HPT NV65AH2

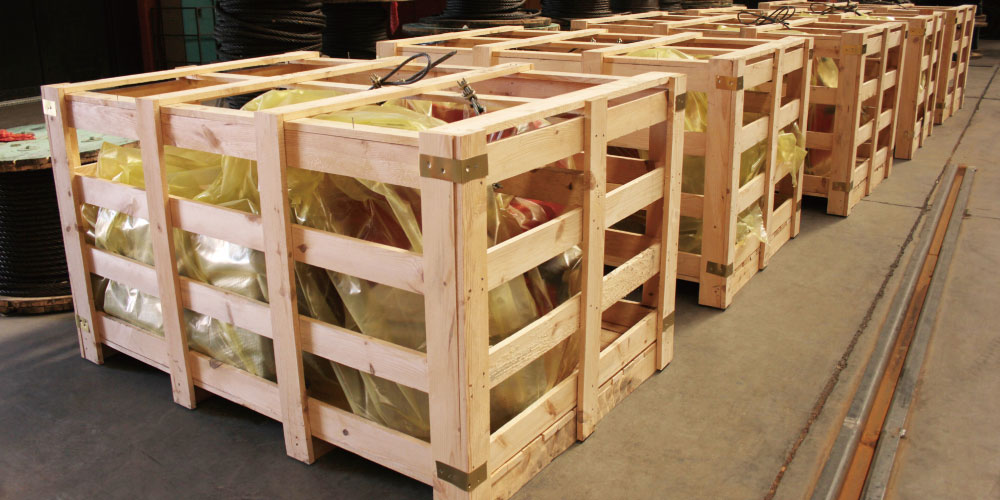

Pallet and Crate Manufacturing

In high-output manufacturing lines, coil nails enable seamless production of wooden pallets, crates, and skids. These nails are compatible with heavy-duty industrial coil nailers, often mounted on automated lines or hand-held tools with large magazine capacities. Coil nails are chosen not only for speed but for their ability to hold through rough handling and stacking.

Common Specs:

• Wire diameter: 0.090" – 0.113" (2.29 – 2.87 mm)
• Length: 1-1/4" ~ 2-1/4" (32 – 57 mm)
• Shank: Screw or ring shank
• Finish: Bright, Phosphate, Zinc-coated
• Tool Compatibility: Vim CN80M, Bostitch N89C-1, Senco PalletPro 100XP, Max CN80, Metabo HPT NV65AN

Deck Building

Decks must endure both static and dynamic loads, making coil nails the ideal choice for fastening deck boards, framing, and guardrails. These nails provide superior shear strength and weather resistance, ensuring long-lasting stability. Coil nailers designed for decking feature depth adjustment and sequential firing modes, allowing for precise fastening and compliance with building codes. For added durability in outdoor applications, roofing nailers with corrosion-resistant fasteners can also be used in certain decking scenarios.

Common Specs:

• Wire diameter: 0.99" – 0.148" (2.51 mm – 3.76 mm)
• Length: 2" ~ 3-1/4" (50 mm – 83 mm)
• Shank: Ring or screw shank
• Finish: Hot-Dip Galvanized (HDG), Ceramic, Polymer-coated
• Tool Compatibility: Vim CN80M, Bostitch N89C-1, Senco SCN75, MAX CN890F2, Metabo HPT NV83A5

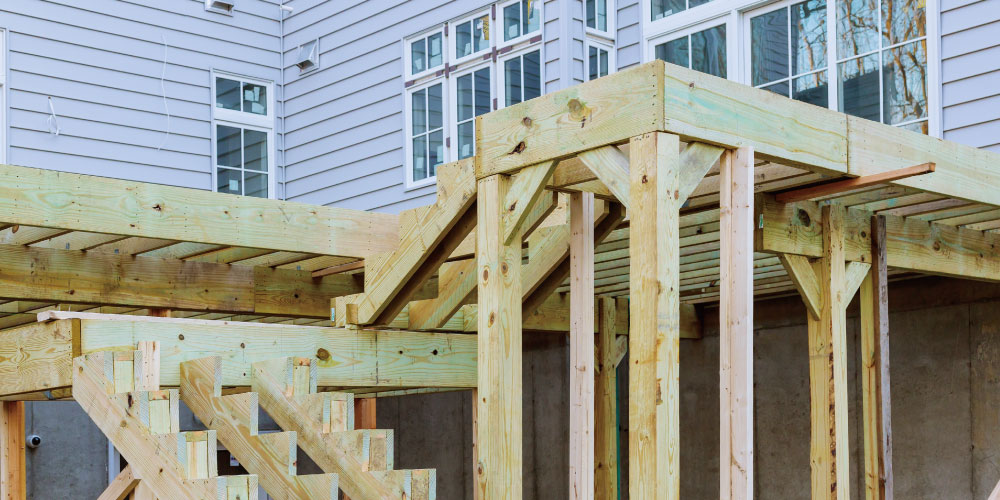

Subflooring

For reliable subfloor installation, coil nails provide the secure fastening needed to prevent squeaks and joint failure when attaching plywood or OSB to joists. These specialized fasteners work seamlessly with framing coil nailers, which offer precise depth control for consistent results. The adhesive coatings on vinyl or resin-finished coil nails enhance grip strength, particularly important for withstanding moisture and load shifts over time. For optimal performance, many contractors pair these with roofing nailers when additional weather resistance is required in moisture-prone areas.

Common Specs:

• Wire diameter: 0.120" – 0.131" (3.05 mm – 3.33 mm)
• Length: 1-3/4" ~ 2-1/2" (45 mm – 65 mm)
• Shank: Screw or ring
• Finish: Vinyl-coated, Resin-coated
• Tool Compatibility: Vim CN60A1, Bostitch N80CB-1, Senco SCN65XP, MAX CN890F2, Metabo HPT NV83A5

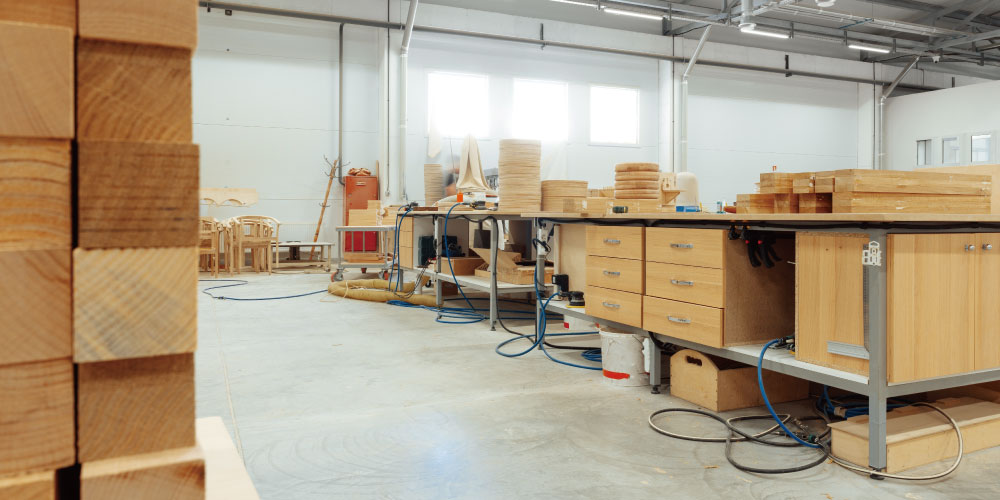

Furniture Manufacturing

In furniture production, coil nails deliver the perfect balance of speed and structural integrity for assembling base frames, drawer rails, and seat supports. These fasteners work exceptionally well with precision coil nailers, enabling clean penetration in both hardwood and softwood without splitting. For upholstered furniture applications, specialized roofing nailers can also be adapted to secure fabric fasteners using similar coil nail technology.

Common Specs:

• Wire diameter: 0.083" – 0.099" (2.1 mm – 2.5 mm)
• Length: 1" ~ 1-3/4" (25 mm – 45 mm)
• Shank: Smooth or ring
• Finish: Bright or Clear-coated
• Tool Compatibility: Vim CN55M, Bostitch N58C-1, Senco SCN49XP, MAX CN55, Fasco F33 CN15W-PS50

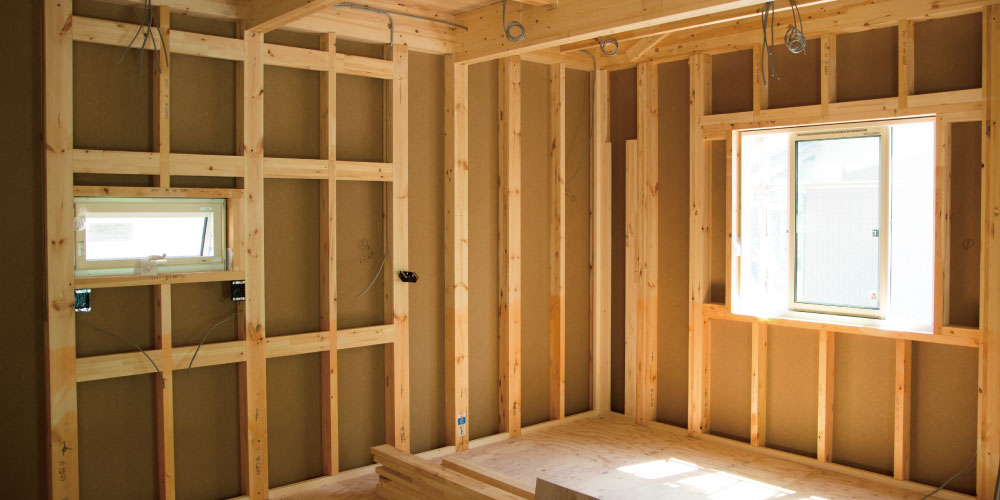

Woodworking and Finish Carpentry

For precision trim work and fine joinery, coil nails provide the ideal combination of discreet fastening and reliable hold. These smaller-gauge fasteners are perfectly matched to finish coil nailers, which feature adjustable exhaust and low-recoil designs for delicate casing and molding applications. When working with exterior trim, many craftsmen opt for roofing nailers equipped with corrosion-resistant coil nails to ensure long-term durability.

Common Specs:

• Wire diameter: 0.072" – 0.083" (1.83 mm – 2.1 mm)
• Length: 3/4" ~ 1-1/2" (19 mm – 38 mm)
•
• Shank: Smooth
• Finish: Bright, Clear-coated
• Tool Compatibility: Vim CN55M, Bostitch N58C-1, Senco SCN49XP, MAX CN445R3, Fasco F33 CN15W-PS50

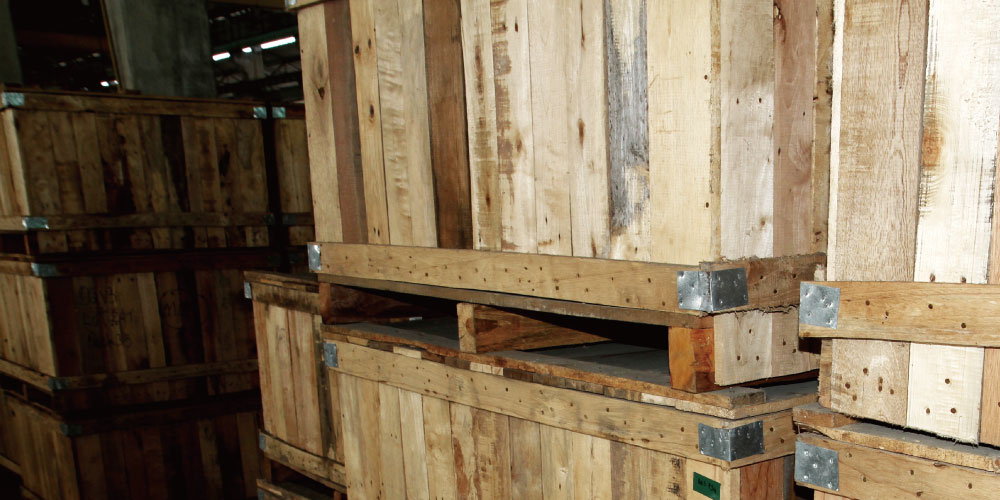

Shipping and Packaging

For secure export crates and heavy-duty packaging, coil nails deliver unmatched fastening performance to withstand rigorous shipping conditions. These industrial-grade fasteners are ideally paired with heavy-duty coil nailers, enabling rapid assembly without compromising structural integrity. When sealing moisture-sensitive shipments, many manufacturers utilize roofing nailers with corrosion-resistant coil nails for added protection.

Common Specs:

• Wire diameter: 0.090" – 0.113" (2.29 mm – 2.87 mm)
• Length: 1" ~ 2" (25 mm – 50 mm)
• Shank: Screw or ring
• Finish: Phosphate or Bright
• Tool Compatibility: Vim CN80M, Bostitch N80CB-1, Senco PalletPro 100XP, MAX CN70, Metabo HPT NV65AF

Coil Nail Applications and Specification Overview

【Extended reading: Not Sure Which Gauge to Use? These 4 Points Make It Easy】
【Extended reading: Make Every Connection Count: 4 Clear Strategies to Choose the Best Fastener Materials】
【Extended reading: 14 Surface Treatments That Matter: A Closer Look at Fastener Finishing】
【Extended reading: Choosing the Right Coil Nails: 8 Essential Factors for Your Project】

Vim Quality Standards for Every Coil Nail We Deliver

At Vim, we take quality control seriously—because we know our customers depend on every fastener we deliver. Before any shipment of coil nails leaves our facility, we perform thorough testing using real tools, including both coil nailers and roofing nailers. Each batch is tested for drive depth, feed consistency, and holding performance to ensure reliable on-site results.

Beyond functional testing, we conduct dimensional inspections on every lot. Technicians randomly sample nails and verify wire diameter, nail length, head profile, and shank configuration against technical drawings. These measurements must fall within strict tolerance limits to be approved for shipment.

This dual-check process—real-tool validation and spec inspection—helps us eliminate errors before they reach your hands. Whether you're building pallets, roofing structures, or installing siding, you can count on Vim for consistent, dependable fasteners that meet both performance and dimensional standards.

Conclusion

Across applications—roofing, framing, siding, decking, and beyond—coil nails have proven to be one of the most efficient and structurally reliable fasteners available to professionals. Their compact collated design enables higher magazine capacity and reduced reloading time, while the wide range of available specifications makes them highly adaptable to diverse materials, environmental conditions, and fastening requirements.

The key to long-term performance lies in matching the right nail to the job: choosing the proper wire diameter to avoid splitting, the correct shank type for holding power, and the appropriate finish for corrosion resistance. Pairing these fasteners with the right coil nailer or roofing nailer further enhances efficiency and precision—especially in high-volume or code-sensitive installations. Understanding these variables helps minimize installation errors, improve on-site productivity, and extend the service life of the build.

At Vim, we complement that application knowledge with a stringent quality process. Every coil of nails we ship is tool-tested and dimensionally verified to ensure it performs exactly as expected in the field—because consistent results come from consistent standards.

Feel free to contact us with your requirements—we are here to assist you!
